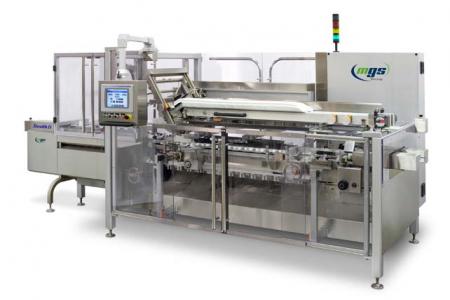

The Stealth II continuous motion, pharmaceutical cartoner from MGS Machine, uses a rotary arm to dispense flattened cardboard cartons before erecting them and filling them with a a variety of different products. The pharmaceutical cartoning system can operate continuously without human labour, increasing output significantly.

Features

• Small footprint requires less floor space.
• Simplified user and diagnostic mode accessed through on screen display
• Servo-based design means fewer moving parts reducing maintenance and providing greater accuracy at high speeds.
• Pre-designed infeed solutions provides for flexibility in handling tubes, vials, bottles, pouches, etc as well as literature insertion.
• Powered carton magazine is ergonomically correct and loads easily.
• Unique guard scheme allows for walk-in access to the machine for cleaning, maintenance and changeover.
• Standard carton pre-break eliminates carton setup failures.
• No tool, quick change carton set-up masks, drop-in plows and guides and HMI recipes reduce changeover time.
• Fall-through containment shelving and guarding design for easy access and clear sight lines.
• Construction fully supports ANSI/PMMI B1.55.1-2006 safety and cGMP guidelines.
• Pharmaceutical validation assistance is included.



Specifications

• Output: 400 cartons per minute
• Power: 230 VAC, 3 Phase, 50-60 Hz
• Air: 5 SCFM @ 80 PSI typical
