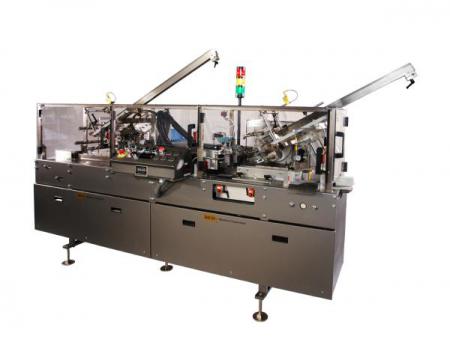

TheTwinserter pharmaceutical outserter from MGS Machine is designed to collate and then glue multiple outserts together together to create a bundle of information to support sample drug pack FDA conformance requirements. This can then be attached to bottles and cartons using the the MGS Sidewinder or MGS Topserter.



Features

  • Operating speeds up to 220 TwinSerts per minute.
  • Typically done off-line, this stand-alone, self contained system benefits both the packager & manufacturer.
  • Assembled package responds to strict FDA guidelines for labels & inserts.
  • Eliminates the need for multiple feed stations, resulting in packaging process cost savings.
  • Product magazines can be continuously loaded while machine is operating.
  • Patented rotary motion is a proven design with years of field tested experience.
  • No Product-No Placement feature reduces production waste.
  • Easy-to-operate control panel with illuminated display for missed detection fault.
  • Tool-less changeovers can be accomplished in minutes.
  • Construction fully supports ANSI/PMMI B155.1-2006 safety and cGMP guidelines.



Specifications

  • Output: 220 Twinserts per minute
  • Power: 230 VAC, 3 Ph, 50/60 Hz
  • Air: 90 PSI Minimum (Filter and Regulator Provided)
  • Minimum Outsert Size:  25.4 mm -12.7 mm x 25.4 mm x 0.76 mm
  • Maximum Outsert Size:  102 mm x 76 mm x 10 mm

Optional

  • Machine Orientation
  • Four-Foot Powered Magazine
  • Bar Code Scanner
  • Low-Level Magazine Sensors
  • Product Reject Station with Reject Verification
  • Venturi Vacuum System
  • Three-Element Stack Light
  • Lot and Batch Counters
  • Casters
  • Commissioning Documentation Package
  • Discharge Options Include:
  1. Catch bin
  2. Shingling Conveyor
  3. Finished Product Upender/Grouper
  4. Automatic Tray Loader
