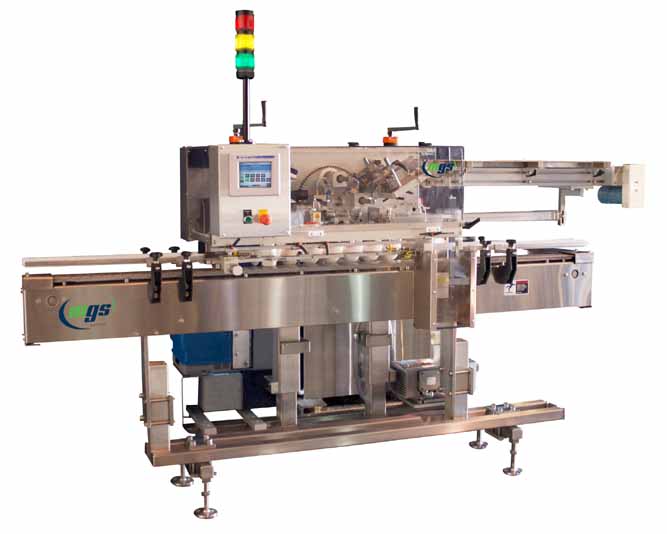

The Topserter II pharmaceutical outserter from MGS Machine is designed to accurately adhere outserts containing product information onto cartons or bottles. The outserter utilizes a four head rotary system to continuously apply the outserts at a high output, thus increasing effeciency while also maintaining accuracy.

Features

• Designed to meet relevant CGMP guidelines, reducing cleanup and inspection.
• Standardized FAT, IQ and OQ protocols are included, assiting to reduce commissioning and validation.
• Quick and easy changeover utilizing change parts and digital screw adjustments.
• Easy-to-load ergonomic magazine with outsert tray shelf.
• The ability to incorporate most outsert identification devices: bar code scanners, vision and smart sensors.
• Easily installs over most conveyor lines.
• Hot-melt adhesive system.

 Specifications

• Power: 208/230 VAC 3 Ph 50/60 Hz 30 Amp supply (including the adhesive system)
• Air: 80 PSI minimum at 0.6 SCFM Filter and Regulator Provided
• Output: Up to 250 bottles per minute
• Hot melt adhesive system with optional tabletop conveyor
• Minimum Outsert Dimensions: 25.4mm x 25.4mm x 3.17mm thick
• Maximum Outsert Dimensions: 76.2mm x  76.2mm x 9.52mm thick

Optional

• Four, Six or Eight-Foot Long Powered Magazine
• Extended Capacity Prefeeder
• Timing Screw or Random Cycle Bottle Control
• Stepper or Servo Drive
• Low Noise Vacuum Systems
